Fuel Pump Side
- Install the fuel level sensor to the fuel pump assembly.

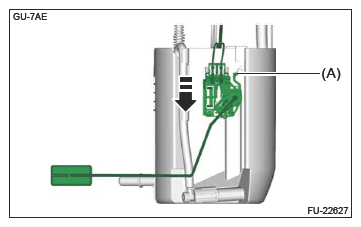

- Install the fuel level sensor and confirm that the claw (A) is locked securely.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Install the fuel level sensor harness and connector cable to the clip.
CAUTION:
Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.

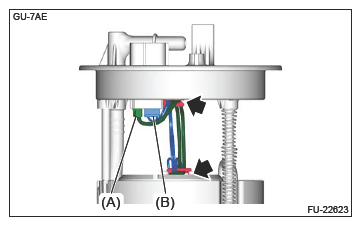

- Connect the connector (B).
- Connect the connector (A).
 Courtesy of SUBARU OF AMERICA, INC.
|
- Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>INSTALLATION .
