Engine Control Module (ECM): Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.

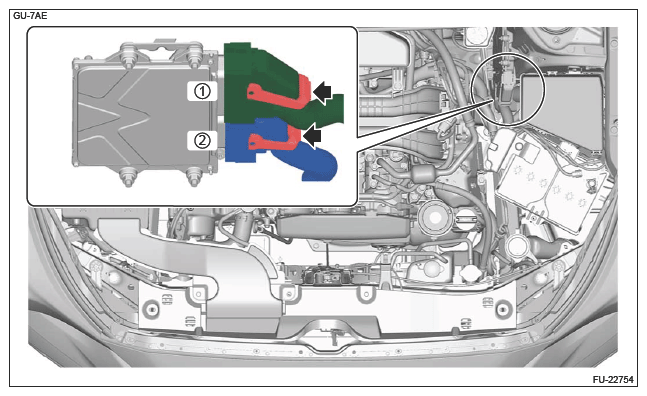

- Disconnect the connector in numerical order as shown in the figure.
CAUTION:
Make sure that the lock is released before moving the lever in order to avoid damaging the connector.
NOTE:

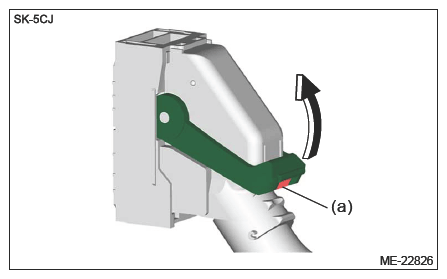

To disconnect the connector, press the portion (a) shown in the figure to release the lock and move the lever in the direction of arrow.
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the ECM.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the ECM bracket.
NOTE:
Perform this procedure only when required.

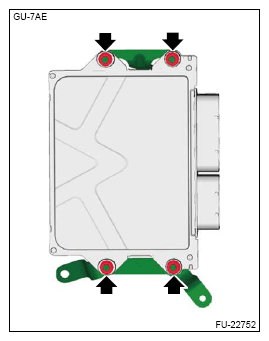

 Courtesy of SUBARU OF AMERICA, INC.
|
