Select Lever And Select Cable

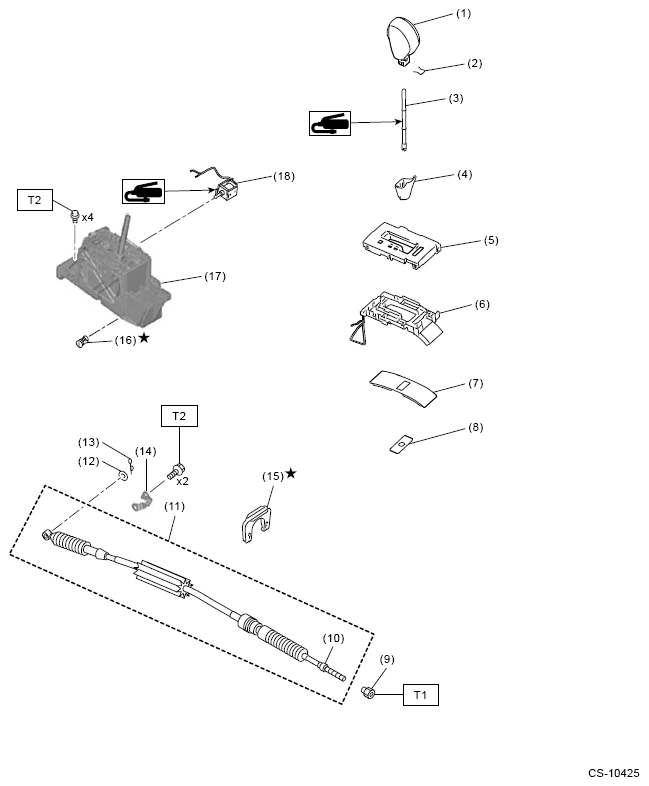

Fig 1: Select Lever And Select Cable Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Grip
(2)	Clamp
(3)	Rod
(4)	Grip cover
(5)	Indicator
(6)	Housing
(7)	Blind A
(8)	Blind B
(9)	Adjusting nut (rear)
(10)	Adjusting nut (front)
(11)	Select cable
(12)	Washer
(13)	Snap pin
(14)	Cable bracket
(15)	Clamp
(16)	Connector pin
(17)	Select lever
(18)	Solenoid unit

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 18 (1.8, 13.3)
