Intermediate Case: Disassembly

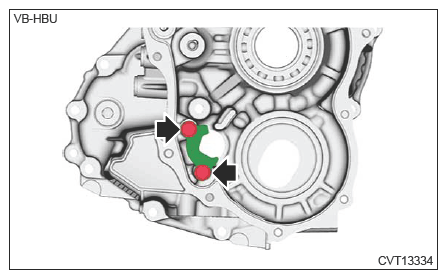

Remove the parking support.

Courtesy of SUBARU OF AMERICA, INC.

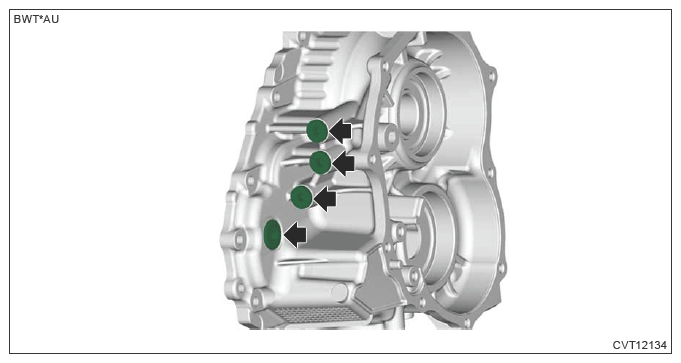

Remove all plugs.

Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REVERSE BRAKE>DISASSEMBLY .
