Fuel Line

Fuel line 1

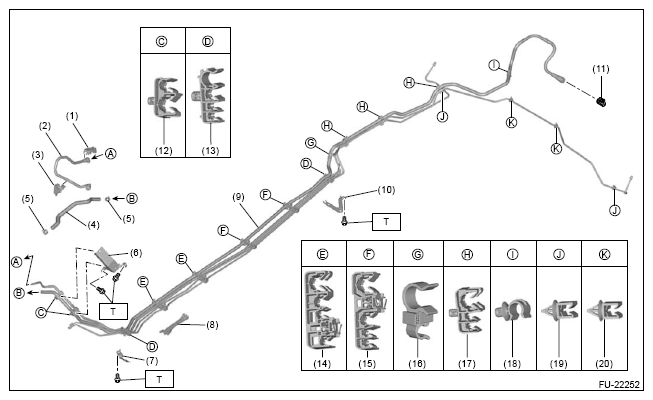

Fig 1: Fuel Line Components Location - Fuel Line 1

Courtesy of SUBARU OF AMERICA, INC.

(1)	Fuel delivery tube clamp
(2)	Fuel delivery tube
(3)	Fuel delivery tube clamp
(4)	Evaporation hose
(5)	Clip
(6)	Fuel pipe bracket A
(7)	Fuel pipe bracket B
(8)	Pipe protector
(9)	Fuel pipe ASSY
(10)	Fuel pipe bracket C
(11)	Retainer
(12)	Pipe clamp
(13)	Pipe clamp
(14)	Pipe clamp
(15)	Pipe clamp
(16)	Pipe clamp
(17)	Pipe clamp
(18)	Pipe clamp
(19)	Pipe clamp
(20)	Pipe clamp

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)

Fuel line 2

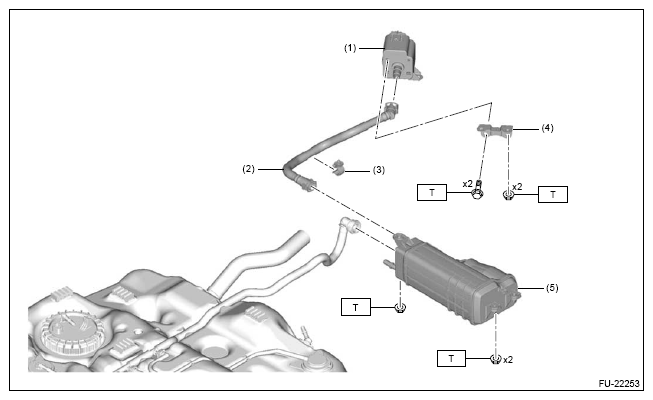

Fig 2: Fuel Line Components Location - Fuel Line 2

Courtesy of SUBARU OF AMERICA, INC.

(1)	Leak check valve ASSY
(2)	Drain tube
(3)	Tube clamp
(4)	Leak check valve ASSY bracket
(5)	Canister

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
