Check Body Integrated Unit Power Supply And Ground Circuit: Notes

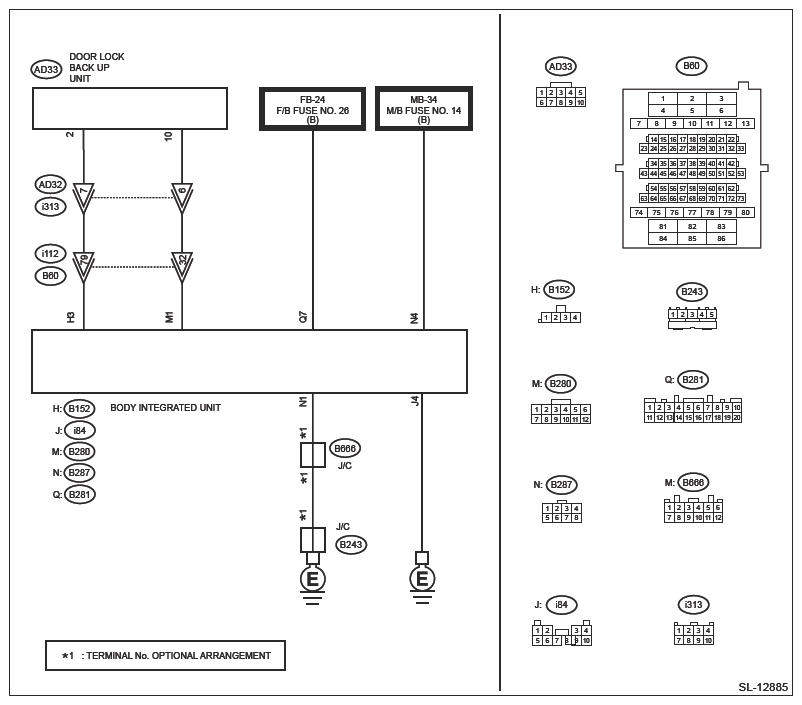

Wiring diagram:
- Model without keyless access with push button start: keyless entry system Ref. to WIRING SYSTEM>KEYLESS ENTRY SYSTEM>WIRING DIAGRAM .
- Model with the keyless access with push button start: keyless access with push button start system Ref. to WIRING SYSTEM>KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM>WIRING DIAGRAM .
- CHECK FUSE
.
- Turn the ignition switch to OFF.
- Check the fuse on the upstream of the body integrated unit. Ref. to SECURITY AND LOCKS>RELAY AND FUSE>INSPECTION .
Is the check result OK?
Yes: Go to 2.
No: Replace the defective fuse.
- CHECK POWER SUPPLY
.
- Disconnect the connector of body integrated unit.
- Measure the voltage between the body integrated unit connector and chassis ground.
Connector & terminal
(B152) No. 3 (+)- Chassis ground (-):
(B280) No. 1 (+)- Chassis ground (-):
(B281) No. 7 (+)- Chassis ground (-):
(B287) No. 4 (+)- Chassis ground (-):
Is the voltage 9 V or more?
Yes: Go to 3.
No: Check the harness for open or short circuit between body integrated unit and fuse.
- CHECK GROUND CIRCUIT
.
Measure the resistance between the body integrated unit connector and chassis ground.
Connector & terminal
(i84) No. 4 - Chassis ground:
(B287) No. 1 - Chassis ground:
Is the resistance less than 10 Ω?
Yes: The power supply and ground circuit are OK.
No: Repair or replace the harness.
