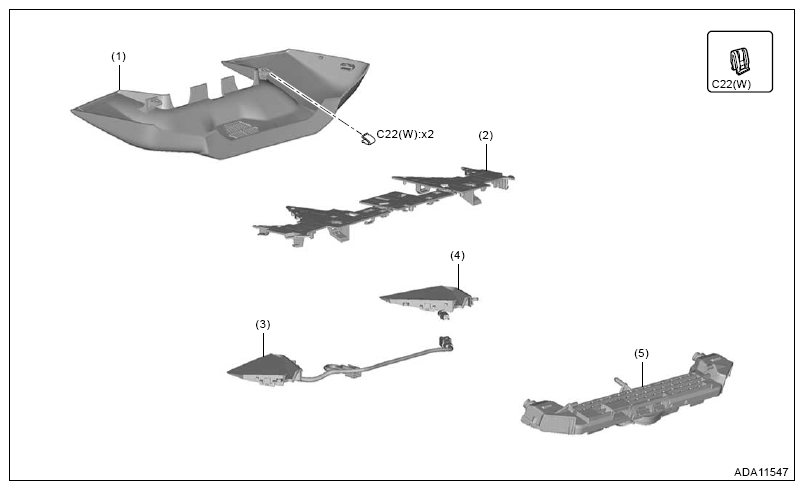

Components With Torque Specifications

G16541547Courtesy of SUBARU OF AMERICA, INC.
(1) Cover EyeSight
(2) Camera bracket
(3) Lens hood ASSY LH
(4) Lens hood ASSY RH
(5) Stereo camera
NOTE: The camera bracket is integrated with the windshield glass.
