Motor Layout

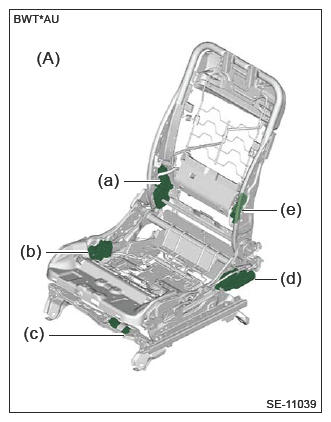

G16386490Courtesy of SUBARU OF AMERICA, INC.

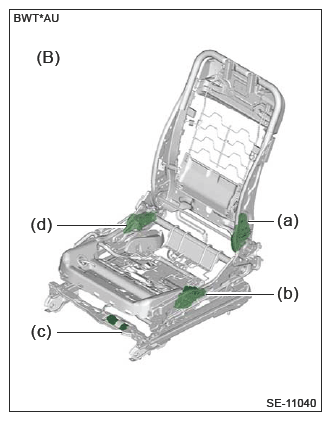

G16386491Courtesy of SUBARU OF AMERICA, INC.
(A) Driver's seat
(B) Passenger's seat
(a) Reclining motor
(d) Lifter motor
(c) Slide motor
(b) Tilt motor
(e) Lumbar motor
