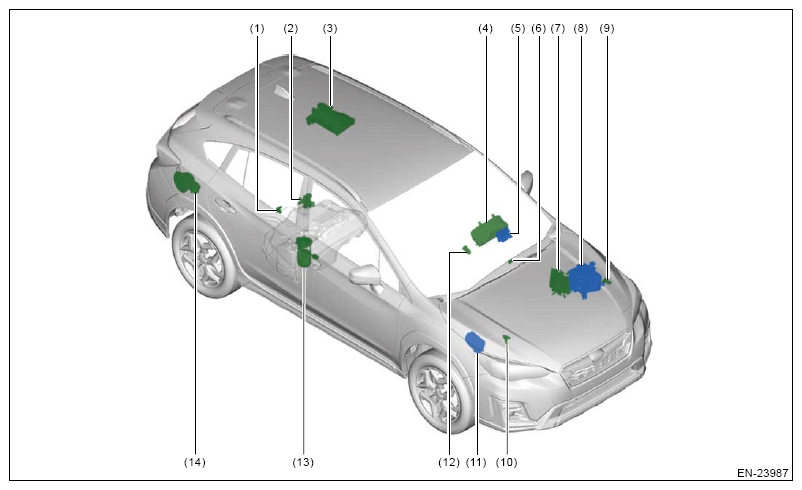

Engine Control System (HEV) (Diagnostics - Introduction): Electrical Component Location: Location: Body
| (1) | Tank pressure sensor |
| (2) | Electric Vent Solenoid Valve ASSEMBLY |
| (3) | Canister & leak check valve ASSY |
| (4) | Combination meter |
| (5) | Fuel door release switch |
| (6) | Data link connector |
| (7) | Engine control module (ECM) |
| (8) | M/B |
| (9) | Battery sensor |
| (10) | Air flow sensor |
| (11) | Relay holder |
| (12) | Push button ignition switch |
| (13) | Fuel pump |
| (14) | Fuel flap status switch |
