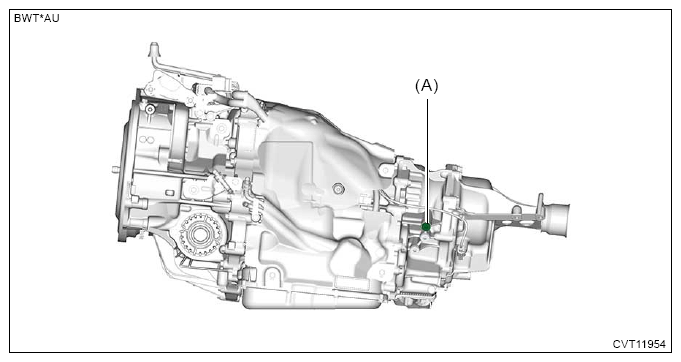

Transfer Clutch Pressure Test: Location

G16389380

Courtesy of SUBARU OF AMERICA, INC.

(A)	Test plug (transfer clutch pressure)
