Rear Drive Shaft: Disassembly

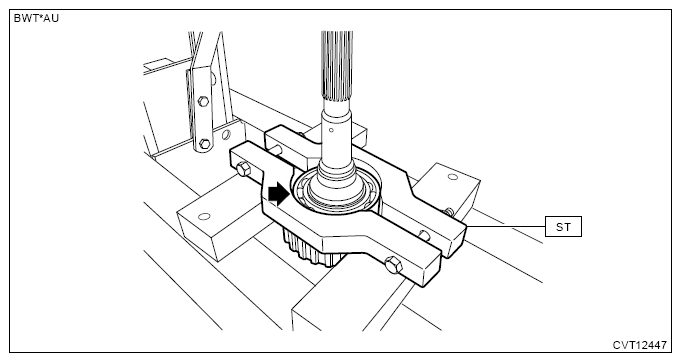

- Remove the ball bearing using the ST and a press.
CAUTION:
Be careful not to drop the rear drive shaft.
Preparation tool:
ST: REMOVER (498077600)
 Courtesy of SUBARU OF AMERICA, INC.
|
