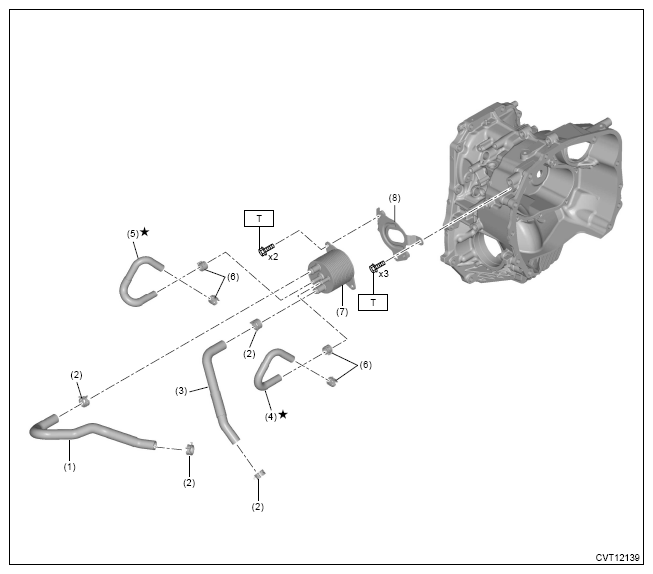

CVTF Cooler (With Warmer Feature)
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Water hose (outlet) |
| (2) |
Clamp |
| (3) |
Water hose (inlet) |
| (4) |
CVTF cooler inlet hose |
| (5) |
CVTF cooler outlet hose |
| (6) |
Clamp |
| (7) |
CVTF cooler (with warmer feature) |
| (8) |
CVTF cooler bracket |
Tightening torque: N.m (kgf-m, ft-lb)
T: 23 (2.3, 17.0)
