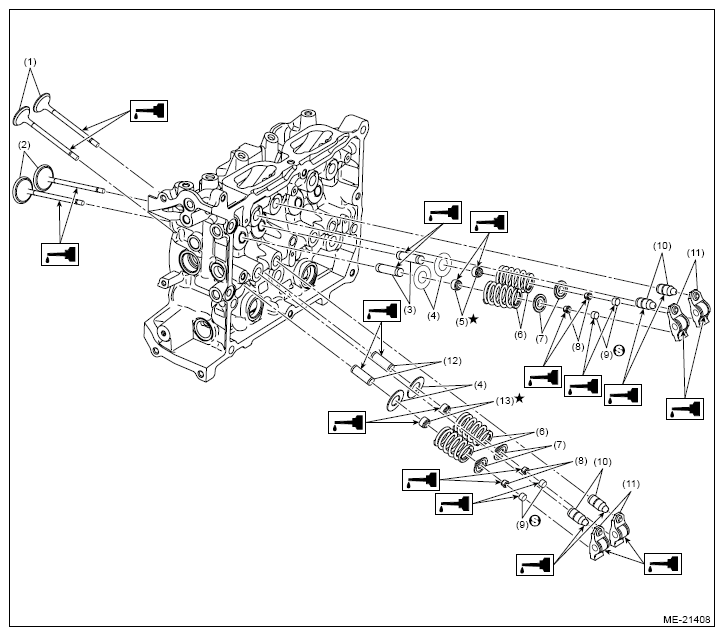

Valve Assembly
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Exhaust valve |
| (2) |
Intake valve |
| (3) |
Intake valve guide |
| (4) |
Valve spring seat |
| (5) |
Intake valve oil seal |
| (6) |
Valve spring |
| (7) |
Valve spring retainer |
| (8) |
Valve collet |
| (9) |
Valve shim |
| (10) |
Roller rocker arm pivot |
| (11) |
Roller rocker arm |
| (12) |
Exhaust valve guide |
| (13) |
Exhaust valve oil seal |
