Rocker Cover

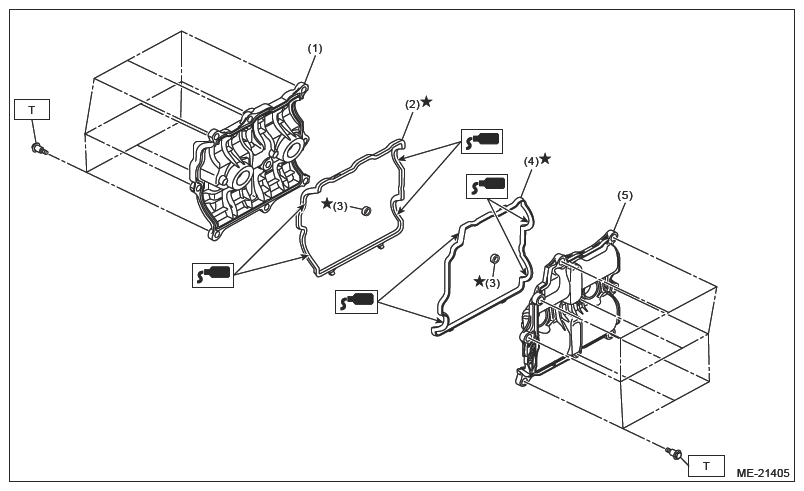

Fig 1: Rocker Cover Components Location
G16383234Courtesy of SUBARU OF AMERICA, INC.
(1) Rocker cover RH
(4) Rocker cover gasket LH
(2) Rocker cover gasket RH
(5) Rocker cover LH
(3) Rocker cover gasket

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DOTC)>ROCKER COVER>INSTALLATION .
