Brake Control System (Diagnostics): Electrical Component Location: Location

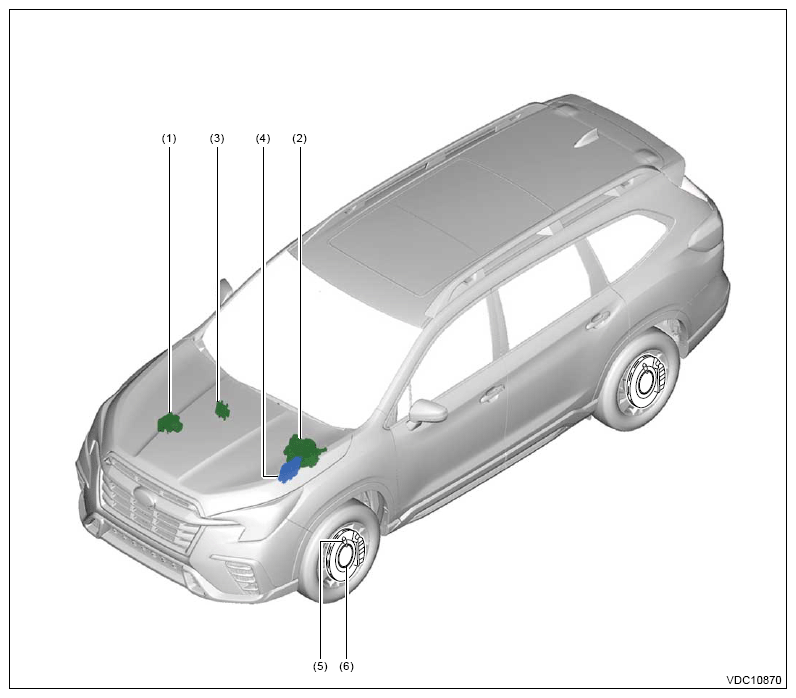

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
VDCCM & H/U |
| (2) |
Electric brake booster control module (master cylinder) |
| (3) |
TCM |
| (4) |
ECM |
| (5) |
ABS wheel speed sensor |
| (6) |
Magnetic encoder |

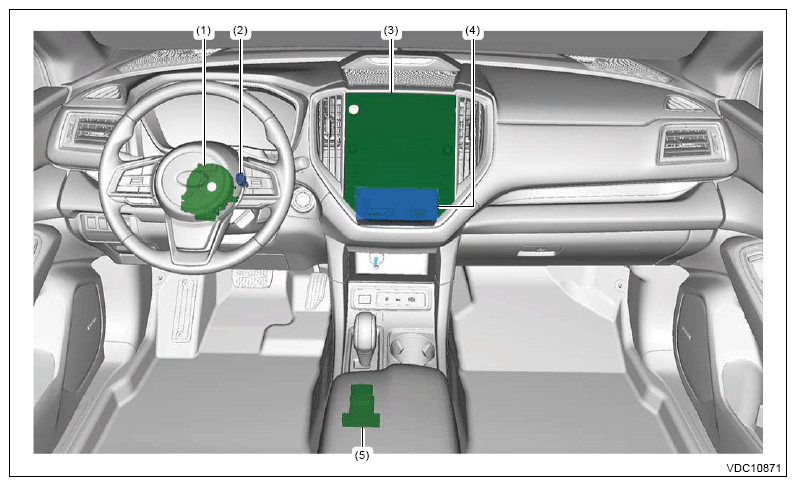

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Steering angle sensor |
| (2) |
Stop light and brake switch |
| (3) |
VDC OFF switch and AVH switch (center information display) |
| (4) |
Cockpit control module |
| (5) |
Electronic parking brake switch |
 Courtesy of SUBARU OF AMERICA, INC.
|
