Front Hood Lock

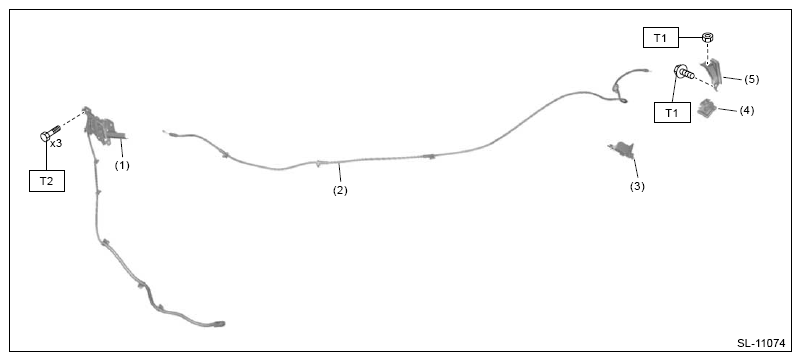

Fig 1: Front Hood Lock Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Lock ASSY front hood
(2)
Cable ASSY front hood
(3)
Protector cable
(4)
Lever
(5)
Bracket lever
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 33 (3.4, 24.3)
Courtesy of SUBARU OF AMERICA, INC.
