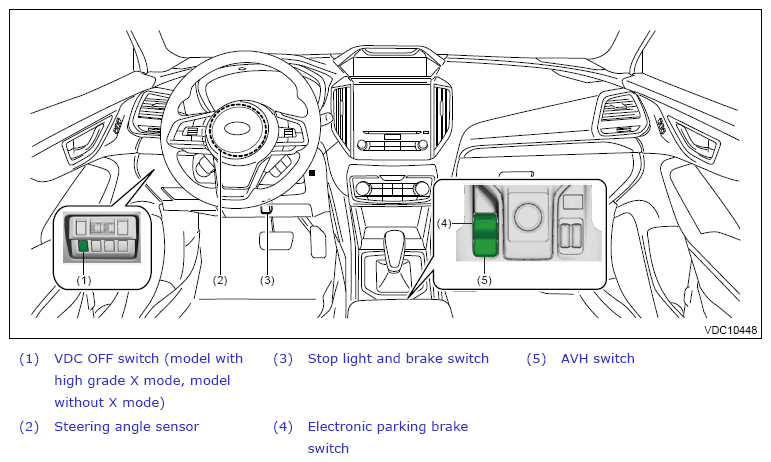

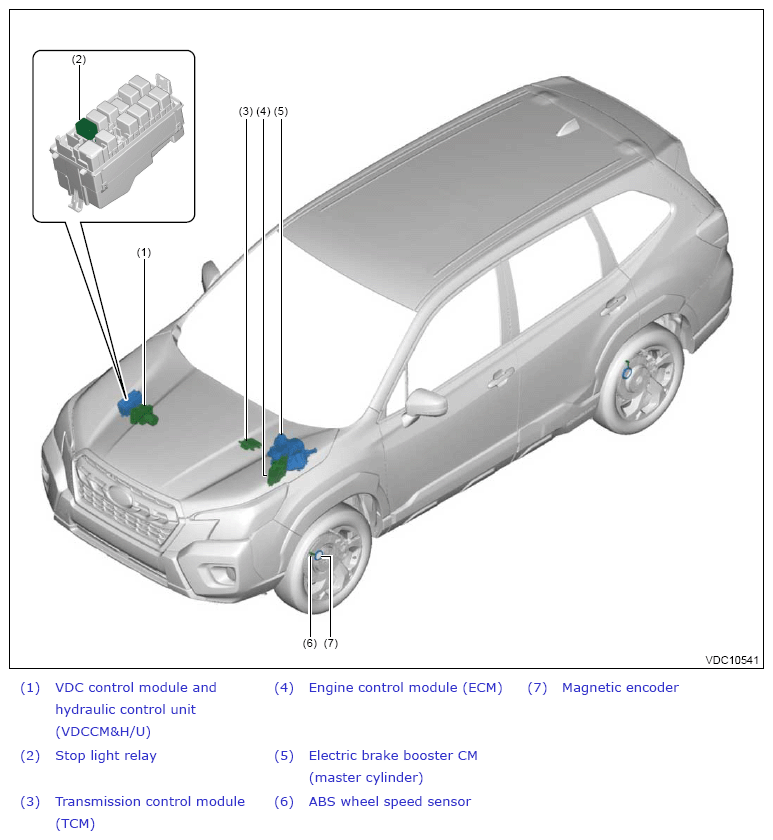

Brake Control System (Diagnostics): Electrical Component Location: Location
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
For models with standard X mode, VDC OFF switch is integrated with X mode switch.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
