Before Overhaul

  1. Remove the turbine speed sensor. Ref. to AUTOMATIC TRANSMISSION>TURBINE SPEED SENSOR>REMOVAL .
  2. Remove the output revolution sensor. Ref. to AUTOMATIC TRANSMISSION>OUTPUT SPEED SENSOR>REMOVAL .
  3. Remove the air breather pipe. Ref. to AUTOMATIC TRANSMISSION>AIR BREATHER PIPE>REMOVAL .
  4. Remove the ATF cooler pipe union. Ref. to AUTOMATIC TRANSMISSION>ATF COOLER PIPE AND HOSE>REMOVAL>ATF COOLER PIPE UNION .
  5. Remove all plugs. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION CASE>DISASSEMBLY>PLUG .
  6. Remove the ST (STAND ASSY) from the transmission body.
  7. Remove the extension case. Ref. to AUTOMATIC TRANSMISSION>EXTENSION CASE>REMOVAL .

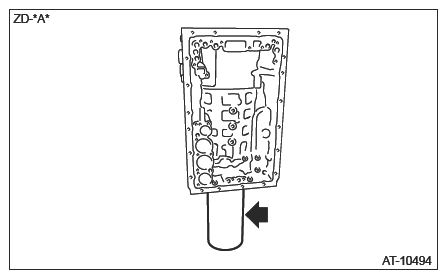

  8. Place the transmission body on a pipe or tube with approx. 125 mm (4.9 in) in inner diameter.
    CAUTION: Be careful not to tip over the transmission body.
    NOTE: Prepare a container for draining of oil, because ATF remaining inside the transmission body may flow out from the output shaft portion.
    G16525688Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the control valve body. Ref. to AUTOMATIC TRANSMISSION>CONTROL VALVE BODY>REMOVAL>CONTROL VALVE BODY .

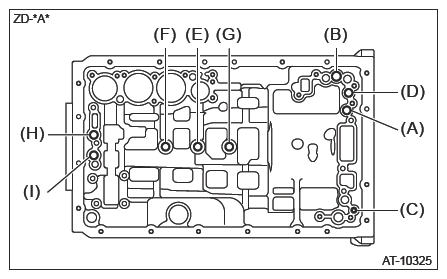

  10. Check each piston operation.
    NOTE:
    • Check the operation sound while blowing compressed air into each oil hole.
    • Check other parts than the defective part.
    G16525831Courtesy of SUBARU OF AMERICA, INC.
    (A) No. 1 clutch
    (D) No. 4 clutch
    (G) No. 3 brake
    (B) No. 2 clutch
    (E) No. 1 brake
    (H) No. 4 brake (IN side)
    (C) No. 3 clutch
    (F) No. 2 brake
    (I) No. 4 brake (OUT side)
  11. Remove the accumulator piston. Ref. to AUTOMATIC TRANSMISSION>CONTROL VALVE BODY>REMOVAL>ACCUMULATOR PISTON .
  12. Remove the parking pawl. Ref. to AUTOMATIC TRANSMISSION>PARKING PAWL>REMOVAL .
  13. Remove the manual valve lever shaft. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION CONTROL DEVICE>REMOVAL .
  14. Remove the oil pump. Ref. to AUTOMATIC TRANSMISSION>OIL PUMP>REMOVAL .
