Radiator Fan System: Wiring Diagram
WARNING:
This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

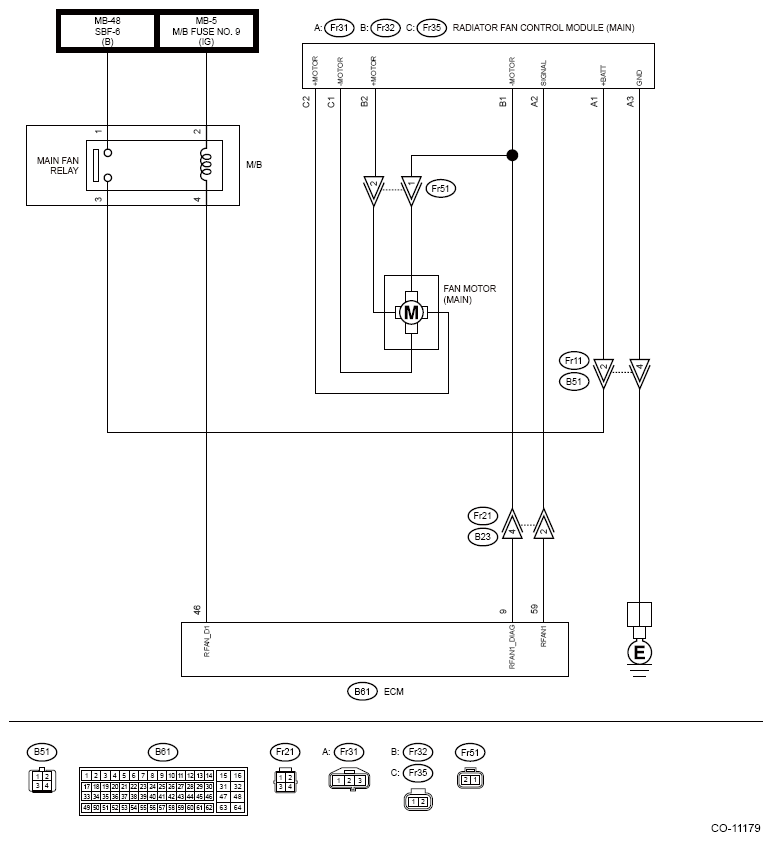

Radiator main fan circuit
Courtesy of SUBARU OF AMERICA, INC.

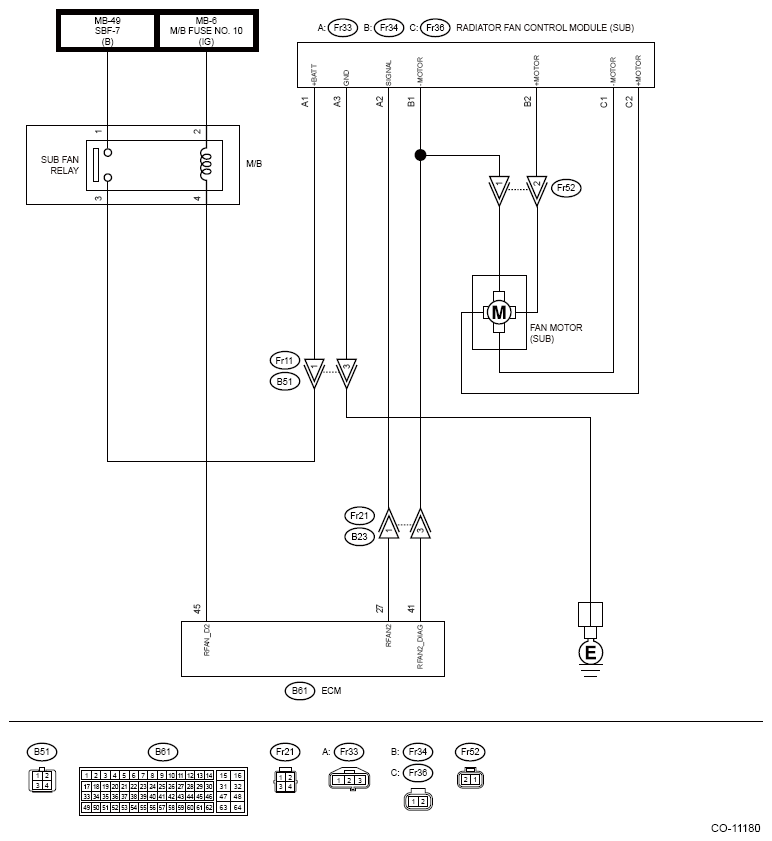

Radiator sub fan circuit
Courtesy of SUBARU OF AMERICA, INC.
