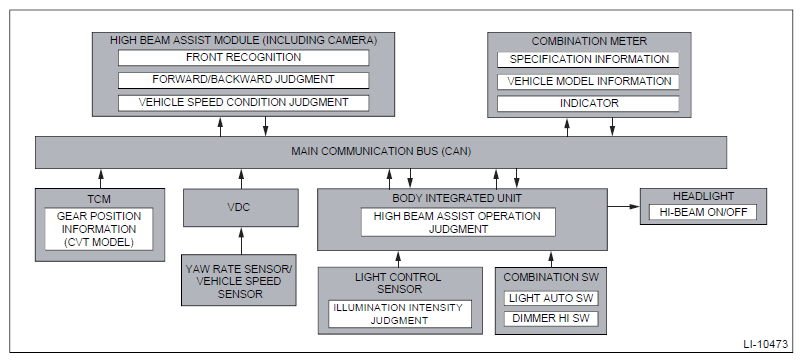

System Block Diagram
 Courtesy of SUBARU OF AMERICA, INC.
|
NOTE:
In high beam assist system, the headlight is automatically switched between high beam and low beam in the way that the stereo camera of EyeSight system recognizes the conditions ahead of the vehicle.
