Transfer Clutch: Removal

Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE>REMOVAL .

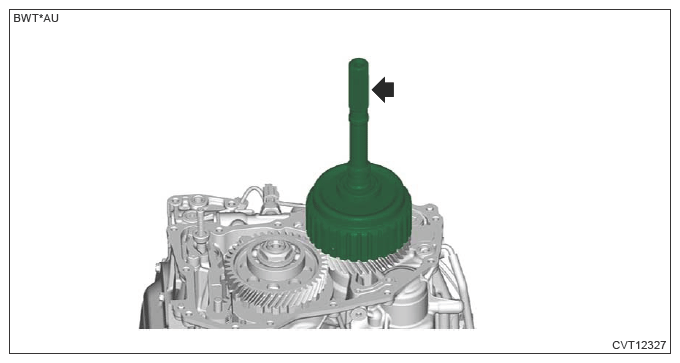

Remove the rear drive shaft.

Courtesy of SUBARU OF AMERICA, INC.

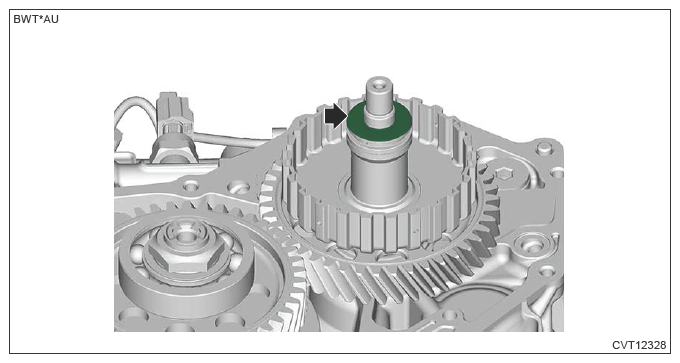

Remove the thrust bearing.

Courtesy of SUBARU OF AMERICA, INC.

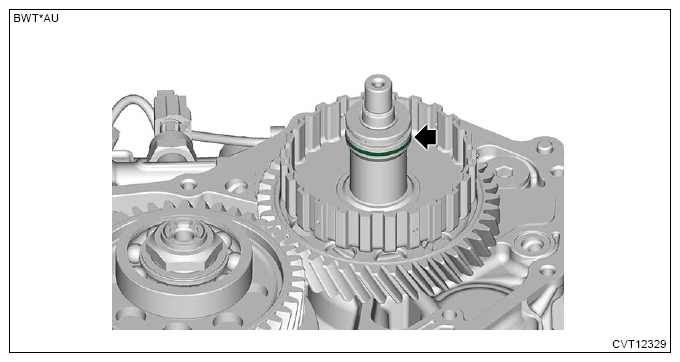

Remove the seal rings.

Courtesy of SUBARU OF AMERICA, INC.
