Reduction Drive Gear: Installation

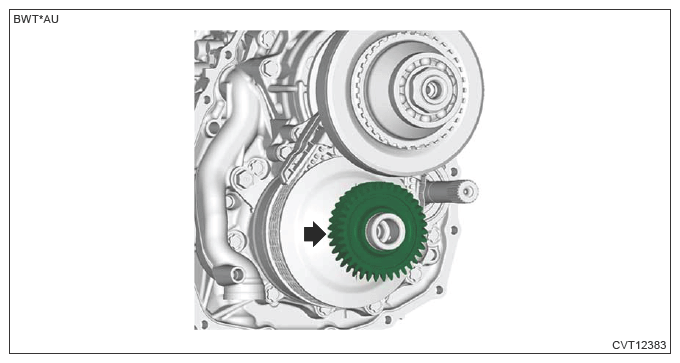

  1. Install the reduction drive gear.
    G13950708Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CASE>INSTALLATION .
