Parking Pawl: Installation
- Operate the shifter arm to set to the "N range" position.
NOTE:
Align the holes of the shifter arm and inhibitor switch.

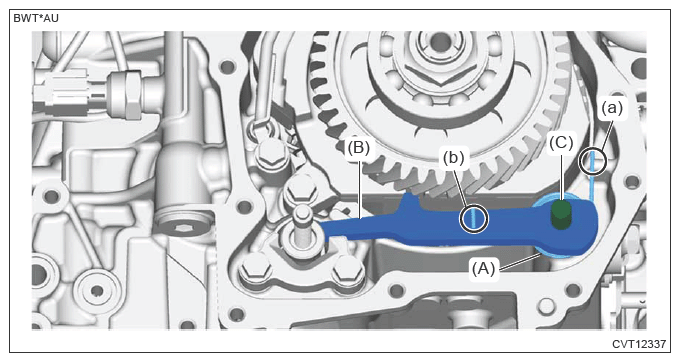

- Install the return spring (A), parking pawl (B) and shaft (C).
NOTE:
- Make sure that the end (a) of return spring contacts the rib.
- Make sure that the end (b) of return spring is sticking out of the parking pawl.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE>INSTALLATION .
