Oil Pump Chain: Assembly
- Using the ST and a press, press-fit a new ball bearing.
NOTE:
Apply CVTF to the press-fitting area.
Preparation tool:
ST: INSTALLER (20099AE020)
 Courtesy of SUBARU OF AMERICA, INC.
|

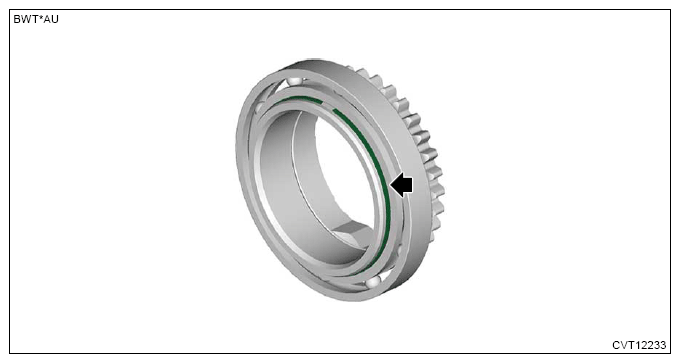

- Install the snap ring.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Install the ball bearing to the driven sprocket.
NOTE:
Apply CVTF to the ball bearing.
