Planetary Carrier

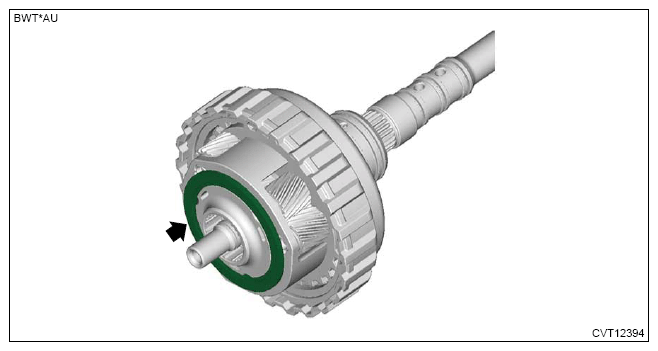

  1. Remove the thrust bearing.
    G13950778Courtesy of SUBARU OF AMERICA, INC.

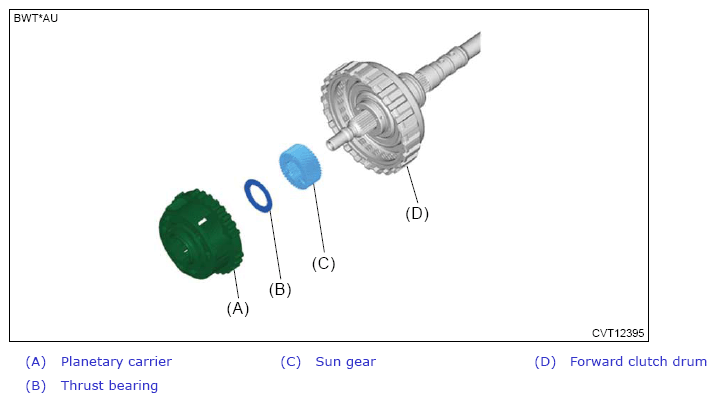

  2. Remove the planetary carrier, thrust bearing and sun gear.
    G13950779Courtesy of SUBARU OF AMERICA, INC.

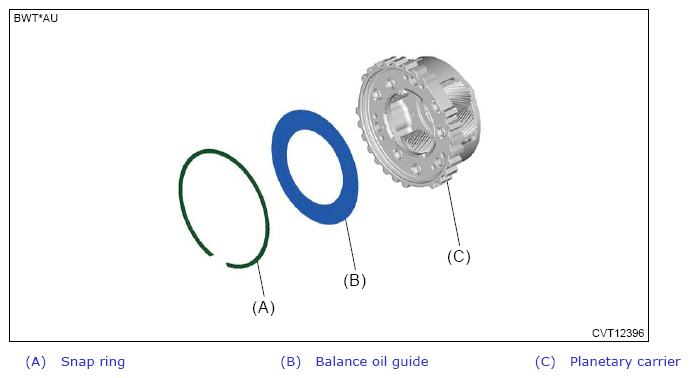

  3. Remove the snap ring and balance oil guide.
    G13950780Courtesy of SUBARU OF AMERICA, INC.
