Electric Fluid Pump: Disassembly

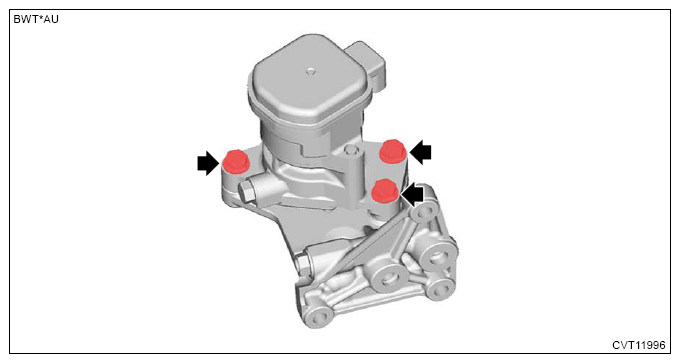

- Remove the electric oil pump.
 Courtesy of SUBARU OF AMERICA, INC.
|

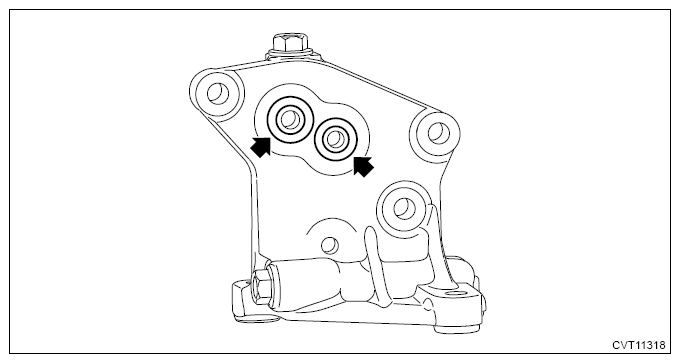

- Remove the O-rings.
 Courtesy of SUBARU OF AMERICA, INC.
|

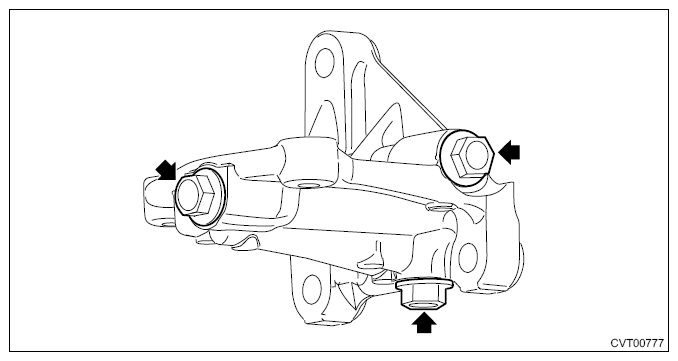

- Remove the plug.
 Courtesy of SUBARU OF AMERICA, INC.
|
