Converter Case: Disassembly

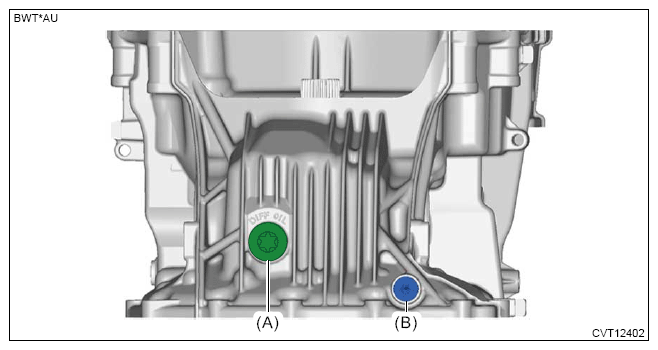

- Remove the drain plug (A) using TORX® bit T70.
- Remove the overflow plug (B).
 Courtesy of SUBARU OF AMERICA, INC.
|

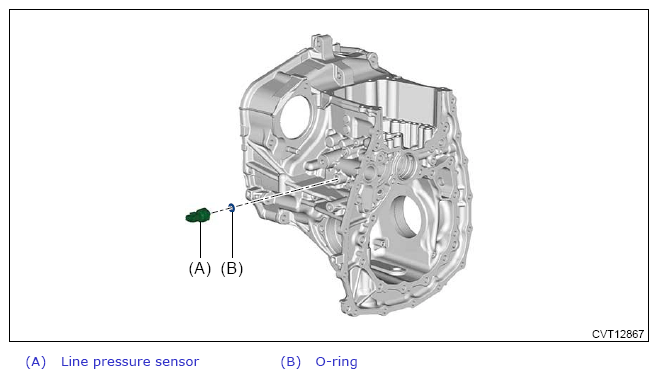

- Remove the line pressure sensor and O-ring.
 Courtesy of SUBARU OF AMERICA, INC.
|

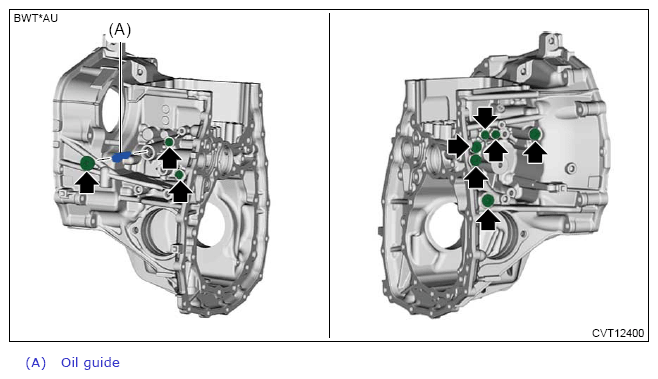

- Remove the plugs and oil guide.
 Courtesy of SUBARU OF AMERICA, INC.
|

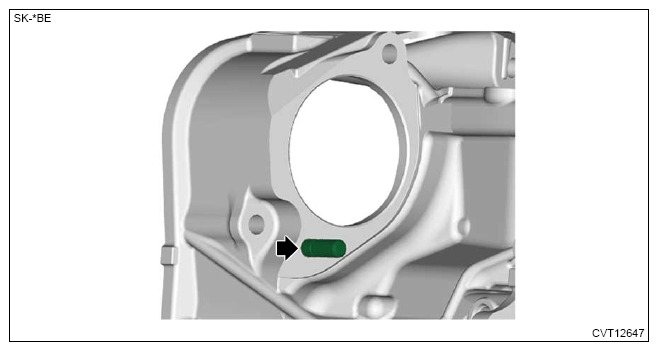

- Remove the stud bolt.
 Courtesy of SUBARU OF AMERICA, INC.
|
