Ball Joint: Removal
- Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL
.
- Remove the ball joint COMPL.

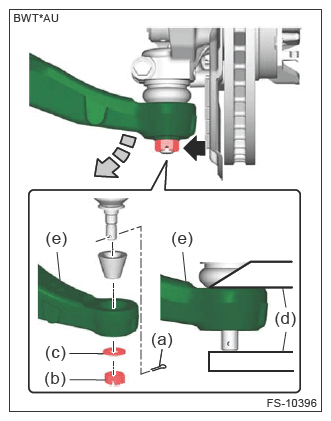

- Remove the cotter pin (a).
- Remove the castle nut (b) and washer (c).
- Use a ball joint puller (d) to detach the arm COMPL front (e).
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the bolt and pull out the ball joint COMPL.
 Courtesy of SUBARU OF AMERICA, INC.
|
