Trailing Link: Removal
- Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL
.

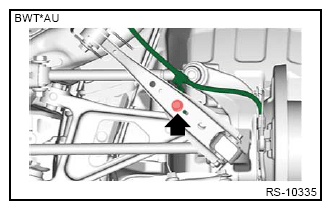

- Remove the bolts and remove the adapter cord EPB bracket.
 Courtesy of SUBARU OF AMERICA, INC.
|

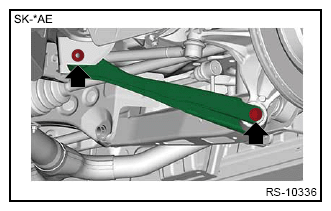

- Remove the bolts and nuts, and then remove the trailing link assembly rear.
 Courtesy of SUBARU OF AMERICA, INC.
|
