Bushing Rear Front Arm

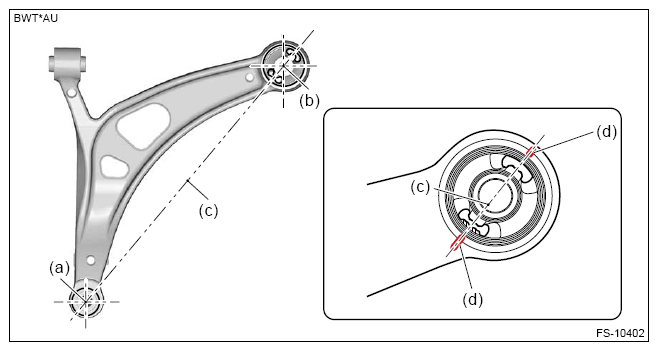

- Put alignment marks (d) on the arm COMPL front, based on an extended line (c) connecting the center of ball joint COMPL (a) and the center of busing rear front arm (b).
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the bushing rear front arm using ST1 and ST2.
Preparation tool:
ST1: REMOVER (20299AG000)
ST2: BASE (20299AG010)
 Courtesy of SUBARU OF AMERICA, INC.
|
