Tie-Rod End: Removal
- Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL
.
- Disconnect the tie-rod end.
CAUTION:
Be careful not to damage the boot of the ball joint.

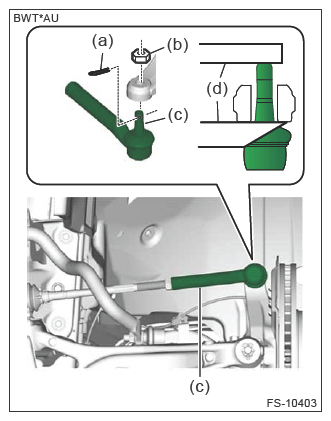

- Remove the cotter pin (a).
- Remove the castle nut (b).
- Using a ball joint puller (d), remove the tie-rod end (c).
 Courtesy of SUBARU OF AMERICA, INC.
|

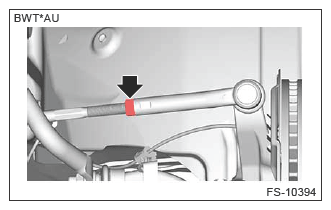

- Loosen the lock nut, and remove the tie-rod end.
 Courtesy of SUBARU OF AMERICA, INC.
|
