Section 5 (Engine Intake System (Induction) And Turbocharger (2.4L)): Intercooler: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily install the intake duct No. 3 using a new gasket.
  2. Tighten the bolts in the numerical order as shown in the figure.

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

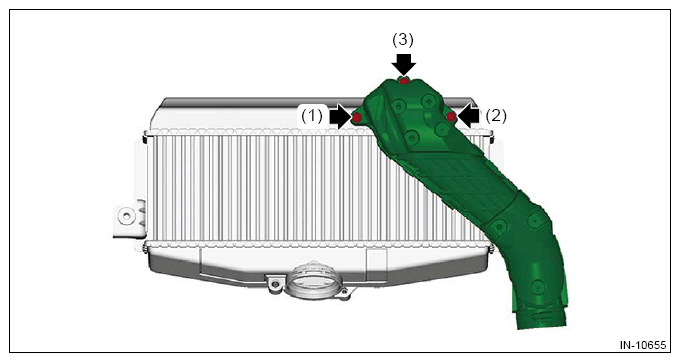

Fig 1: Intake Duct No. 3 Bolts Tightening Sequence
G13948733Courtesy of SUBARU OF AMERICA, INC.
