Transfer Reduction Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>REMOVAL .

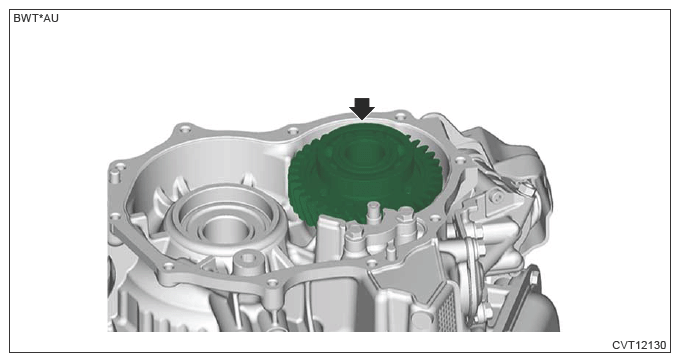

  2. Remove the transfer reduction driven gear.
G13951226Courtesy of SUBARU OF AMERICA, INC.
