Secondary Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: If water or oil contacts the connector terminal of secondary speed sensor, replace it with a new part.

Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .

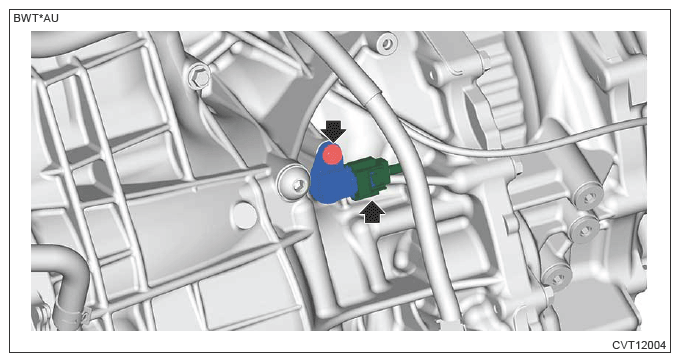

Disconnect the connector and remove the secondary speed sensor.

Courtesy of SUBARU OF AMERICA, INC.
