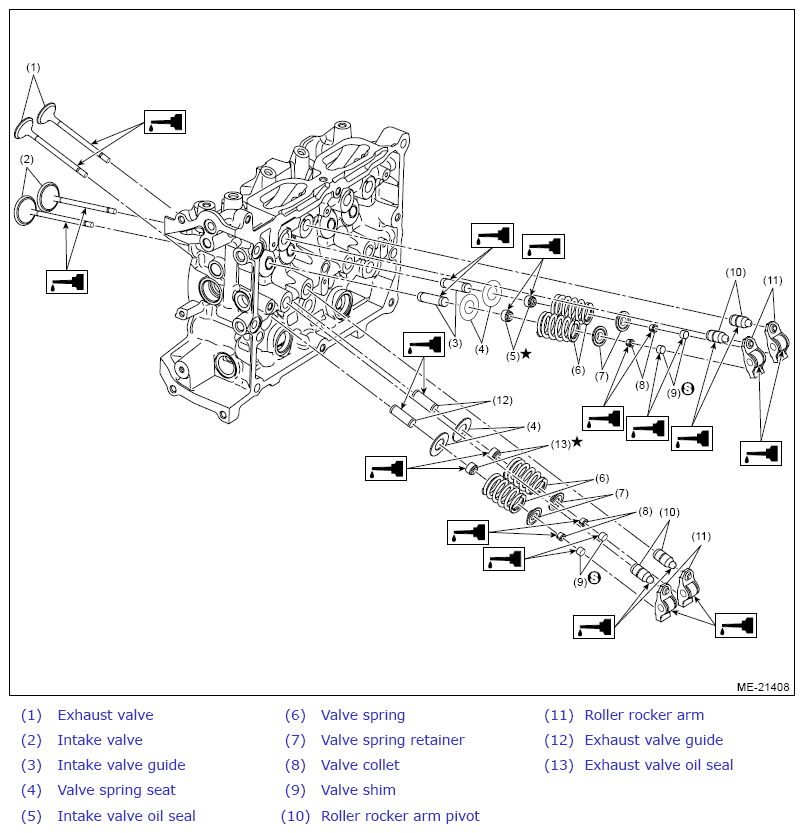

Valve Assembly

WARNING: This page is about a different variant/trim than selected.
G13948755Courtesy of SUBARU OF AMERICA, INC.
