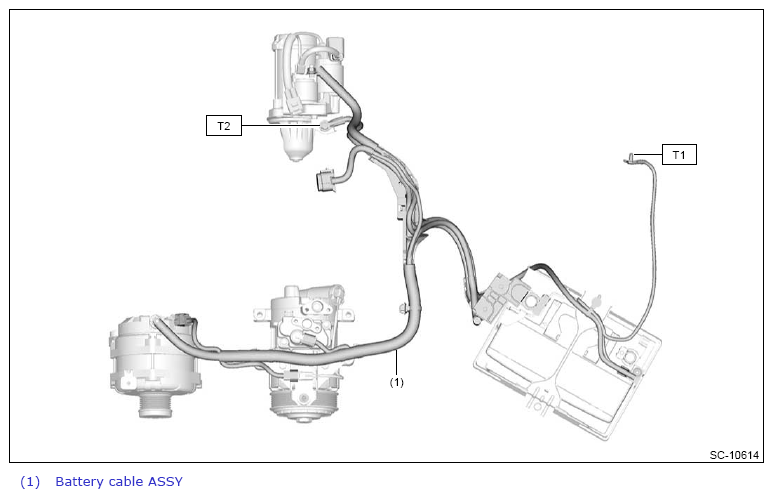

Battery Cable Assembly
WARNING: This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 13 (1.3, 9.6)
T2: 14 (1.4, 10.3)
