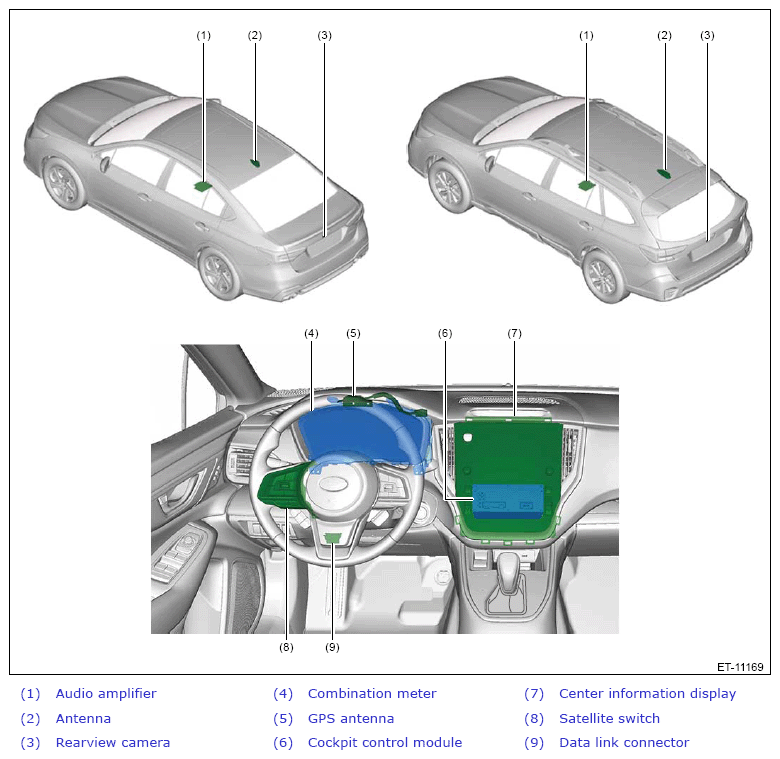

Cockpit Control System (Diagnostics): Electrical Component Location: Location

G13952907Courtesy of SUBARU OF AMERICA, INC.
