Sunroof Assembly: Disassembly

  1. Remove the shade assembly.
    1. Remove the screws and release the claws, then detach the drain holder.
      G13625823Courtesy of SUBARU OF AMERICA, INC.

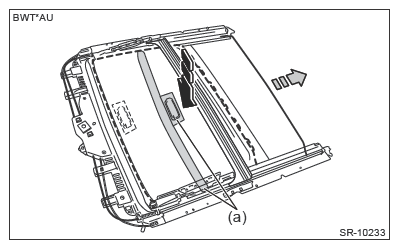

    2. Attach protective tape (a) on the handle and the edge surface of the shade assembly.
    3. At the center of the brace, remove the shade assembly while pushing it downward slightly.
    CAUTION: Be careful not to damage the sunshade.
    G13625824Courtesy of SUBARU OF AMERICA, INC.

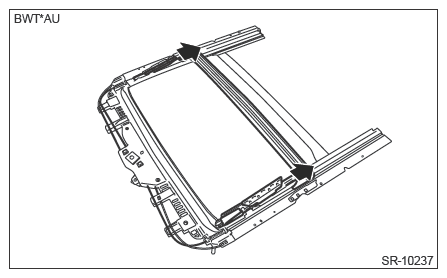

  2. Remove the drain plate and the cable assembly.
G13625835Courtesy of SUBARU OF AMERICA, INC.
