Sunroof Assembly: Assembly
- Install the drain plate and the cable assembly.

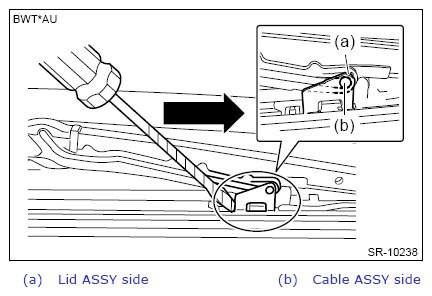

- Using a flat tip screwdriver wrapped with protective tape, move the cable assembly to the foremost position of the lid assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Install the shade assembly.
- Install the drain holder.
