Power Rear Gate Inner Switch: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.

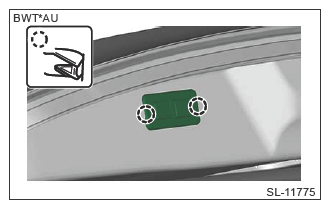

- Remove the cap panel rear gate switch.
- Release the claws and pull out the cap panel rear gate switch rearward.
NOTE:
Insert flat tip screwdrivers wrapped with protective tape into the slits on both sides
.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Disconnect the connector and remove the cap panel rear gate switch.
- Release the claws and remove the power rear gate inner switch and the power rear gate lock switch.
 Courtesy of SUBARU OF AMERICA, INC.
|
