Trunk Opener Button: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.
- Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL
.
- Remove the trunk opener button.
NOTE:
When using a flat tip screwdriver, apply protective tape or cloth so as not to cause damage.
- Disconnect the connector.

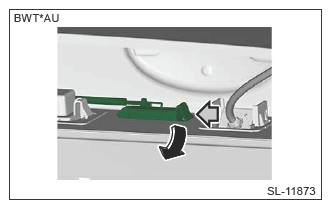

- Remove it by pressing the lock portion of the trunk opener button as shown in the figure.
 Courtesy of SUBARU OF AMERICA, INC.
|
