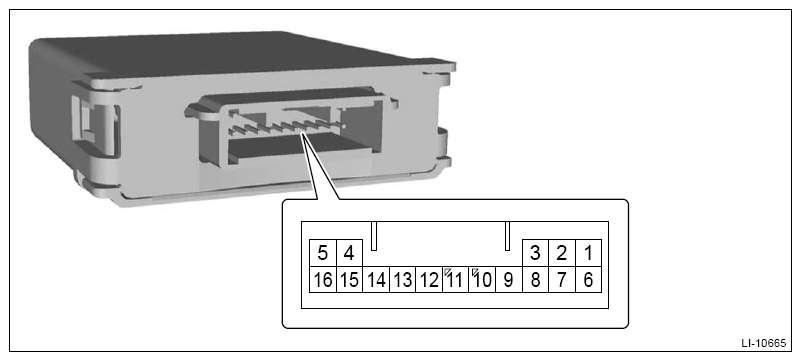

| (B78) No. 1 (+) ←→ Chassis ground (-) |
Battery power supply |
Always |
8 - 16 V |
| (B78) No. 2 (+) ←→ Chassis ground (-) |
GND |
Always |
Less than 1 Ω |
| (B78) No. 3 (+) ←→ Chassis ground (-) |
Ignition power supply |
Ignition switch ON |
8 - 16 V |
| (B78) No. 4 |
- |
- |
- |
| (B78) No. 5 |
- |
- |
- |
| (B78) No. 6 ←→ Chassis ground |
Leveling actuator power supply |
Ignition switch ON |
8 - 16 V |
| (B78) No. 7 ←→ Chassis ground |
Leveling actuator GND |
Always |
Less than 1 Ω |
| (B78) No. 8 |
- |
- |
- |
| (B78) No. 9 ←→ Chassis ground |
Leveling actuator signal |
Headlight off → on |
Less than 1 V → 1.0 - 14.4 V (for 17 seconds) |
| Headlight on, no vehicle height change → change and hold vehicle height for 3 seconds or more |
| (B78) No. 10 |
- |
- |
- |
| (B78) No. 11 ←→ Chassis ground |
LH headlight malfunction signal |
Always |
1 MΩ or more |
| (B78) No. 12 ←→ Chassis ground |
RH headlight malfunction signal |
Always |
1 MΩ or more |
| (B78) No. 13 ←→ Chassis ground |
SRH signal (LIN) |
Always |
1 MΩ or more |
| (B78) No. 14 ←→ Chassis ground |
SRH GND |
Always |
Less than 1 Ω |
| (B78) No. 15 ←→ Chassis ground |
CAN-H |
Always |
1 MΩ or more |
| (B78) No. 16 ←→ Chassis ground |
CAN-L |
Always |
1 MΩ or more |
