Power Amplifier: Removal
NOTE:
The power amplifier assembly is installed under the front seat RH. Remove the power amplifier assembly after sliding the front seat RH back and forth as necessary.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.
- Remove the power amplifier assembly.
- Remove the nut and harness clip.
 Courtesy of SUBARU OF AMERICA, INC.
|

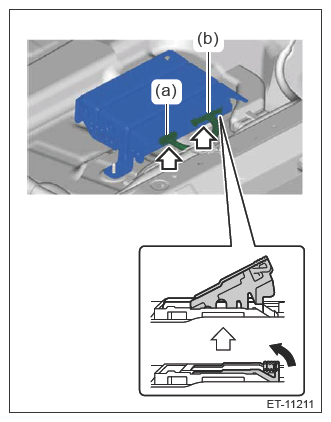

- Disconnect the connector (a).
- Move the lock lever in the arrow direction as shown in the figure and disconnect the connector (b) and remove the power amplifier assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
