Roof Antenna

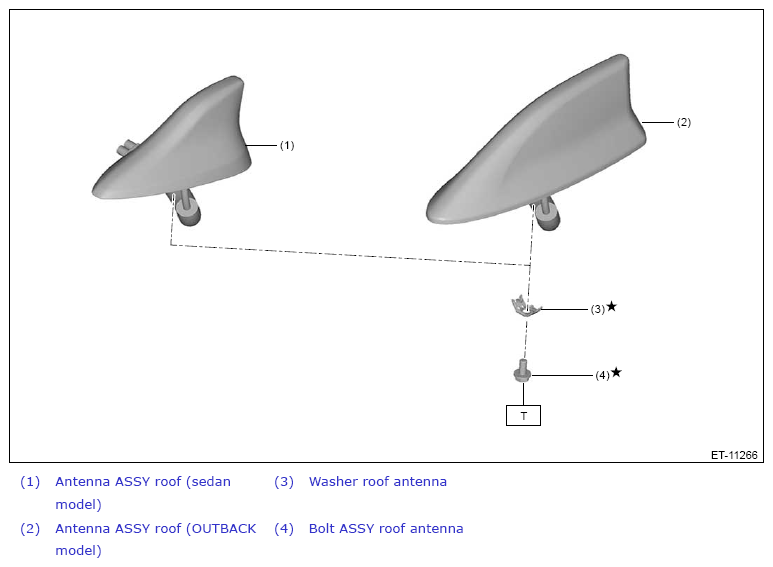

Fig 1: Roof Antenna Components
G13952069Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 4.5±1 (0.5±0.1, 3.3±0.7)
