•Outback Model
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.
- Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE
.
- Remove the front view camera assembly.
CAUTION:
Do not drop or apply any impact to the front view camera assembly because it is a precision equipment.

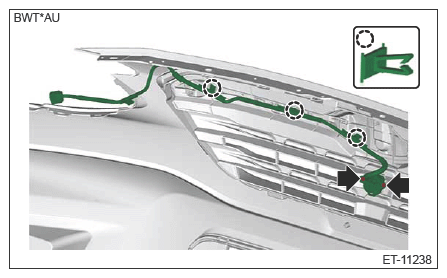

- Remove the cable clamps.
- Remove the screws and remove the front view camera assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
