Radar Sensor LH (Master)

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face rear. Ref. to EXTERIOR/INTERIOR TRIM>REAR BUMPER>REMOVAL .
  3. Remove the radar sensor LH (master).
    1. Disconnect the connector.
    2. Remove the nut and remove the radar sensor LH (master).

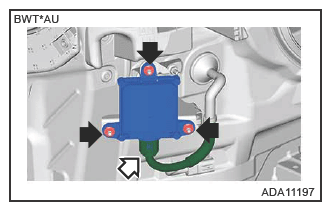

      Sedan model

      G13079239Courtesy of SUBARU OF AMERICA, INC.

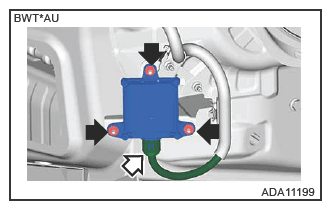

      OUTBACK model

      G13079240Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the radar bracket.
    1. Remove the harness clip.
    2. Remove the nut and remove the radar bracket.

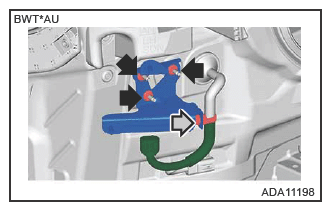

      Sedan model

      G13079241Courtesy of SUBARU OF AMERICA, INC.

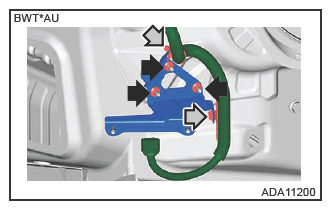

      OUTBACK model

      G13079242Courtesy of SUBARU OF AMERICA, INC.
