Fuel Lid Lock/Unlock And Open/Close Operation

  1. Lock/unlock the door by keyless transmitter, access key or power door lock switch to check that the fuel lid locks and unlocks normally.
  2. With unlock condition, push the fuel lid to check the fuel lid can be opened normally.
  3. Operate the luggage room emergency release cable to check the fuel lid can be unlocked normally.

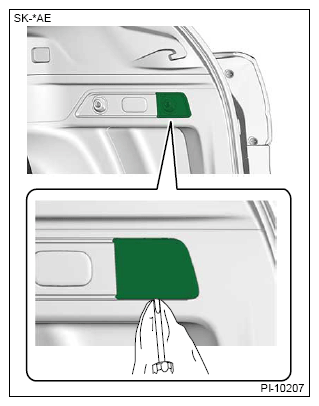

    1. Remove the luggage room cover.
      G13223744Courtesy of SUBARU OF AMERICA, INC.

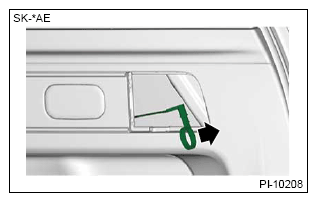

    2. Operate the emergency release cable to check the fuel lid can be unlocked normally.
    G13223745Courtesy of SUBARU OF AMERICA, INC.
