Leak Check Valve Assembly: Installation

Install the leak check valve assembly bracket.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Connect the drain tube A to the leak check valve assembly, Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
Install the leak check valve assembly.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Connect the connector (E).
Install the circulate tube (D) to the clip (C).

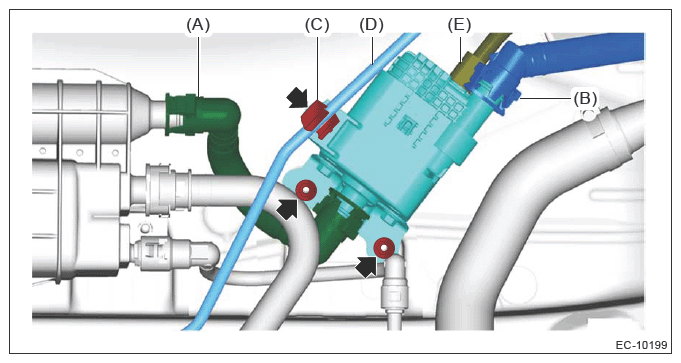

Connect drain tube A (A) and drain tube B (B). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the ground terminal to battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
