Model Without Keyless Access With Push Button Start
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .
- Remove the immobilizer antenna assembly.
- Disconnect the connector.

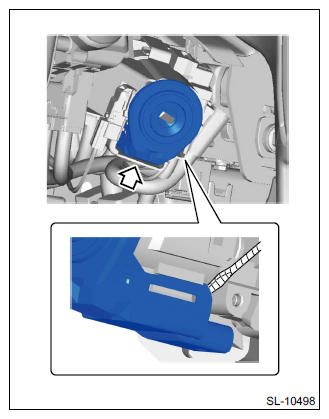

- Release the claws using a flat tip screwdriver or similar tool wrapped with protection tape, and remove the immobilizer antenna assembly.
CAUTION:
Do not apply excessive force to disengage the lock of immobilizer antenna assembly. Otherwise they may be broken because those parts are the products made of a plastic.
