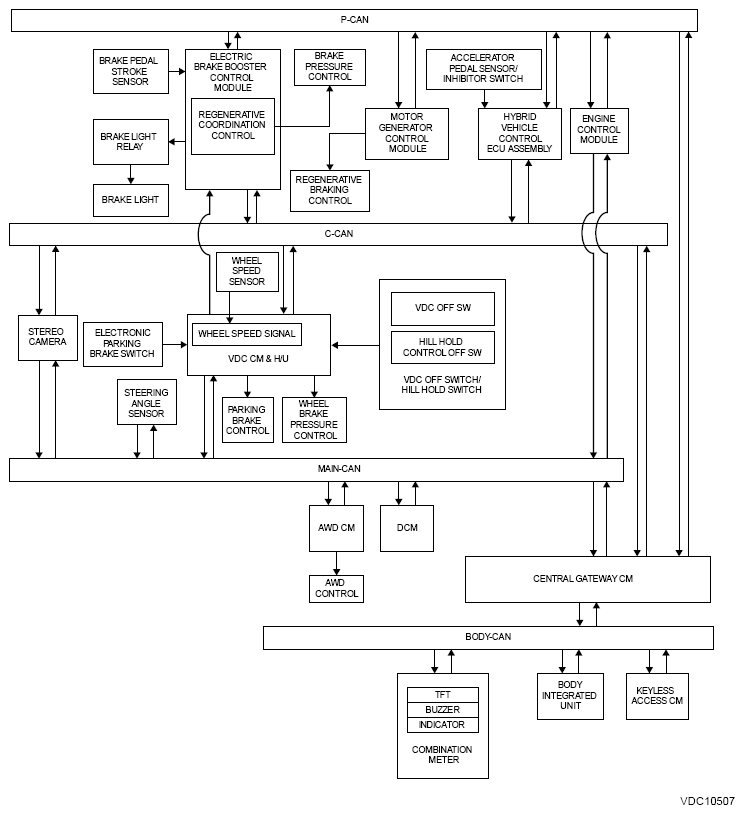

System Block Diagram

WARNING: This page is about a different variant/trim than selected.
G13245318Courtesy of SUBARU OF AMERICA, INC.
